- Size: 0.48
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: YES
- Weight: 750.000 kg
1.Specifications

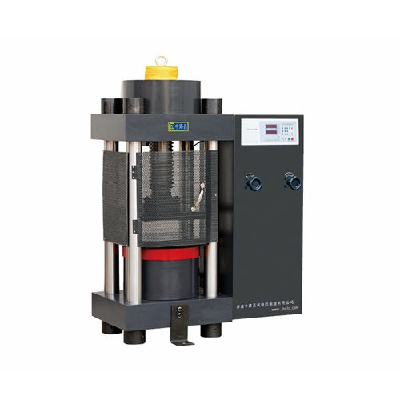

compression testing machine
Hydraulic pressurization
Electronic force measurement
Outage data protection
2. Application
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institutionlines. The test operation and data processing meets standard requirements.
- Size: 0.48
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: YES
- Weight: 750.000 kg
Maximum Testing Force | 2000kN | 2000kN | 3000kN |
Measure Range of Testing Force | 4%~100%FS | ||
Relative Accuracy of Value Display of Testing Force | ≤±1% | ≤±1% | <±1% |
Adjustment method of Lead Screw | Manual | Manual | Electronic |
Top and Bottom Pressure Plate Dimension (mm)) | Φ225、Φ300 | 260×300 | 370×370 |
Max.Space of Top and Bottom Pressure Plate(mm) | 320 | 320 | 330 |
Max.Piston Stroke(mm) | 30 | 30 | 50 |
Piston Diameter(mm) | Φ250 | Φ250 | Φ310 |
Rated Pressure of the Hydraulic Pump(Amp) | 40 | 40 | 40 |
Source Power(kW) | Three phase 0.75 | Three phase 0.75 | Three phase 1.1 |
Overall Dimension(L*W*H)(mm) | 800×500×1200 | 800×500×1200 | 1000×600×1500 |
Weight (kg) | 750 | 750 | 1800 |
