1. Applications:

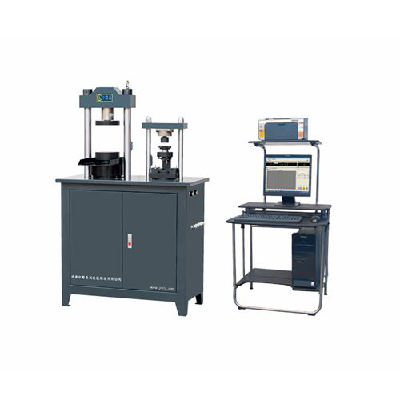

This machine is mainly designed for testing the compression strength of cement and
mortar. It can fulfill the test automatically according to the requirements, which lists in
the inspection method for the strength of cement and mortar, also possess the below
advantages, such as: realizing screen display of test data and test curves. It is ideal
inspection equipment for factories, laboratory and education, etc.
2. Features:
2.1 Computer control up, down, test, stop and loading progress
2.2 Computer automatically control the loading progress
2.3 This machine consist of the host machine, oil source and control system.
2.4 High precision digital servo valve with closed-loop control function
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
- Size: 0.4797
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: YAW
- Weight: 500.000 kg
Model | YAW-300B | YAW-300C |
Maximum Testing Force | 300kN | 300kN/10kN |
Measure Range of Testing Force | 2%～100%FS | 2%～100%FS |
Relative Accuracy of Value Display of Testing Force | ≤±1% | ≤±1% |
Loading Rate(kN/S) | 0.3～10（compression） | 0.3～10（compression）/50(bending) |
Accuracy of Loading Speed | ±5% | ±5% |
Pressure Plate Dimension (mm)) | Φ155（compression） | Φ155（compression）/ 80X150(bending) |
Max.Piston Stroke(mm) | 80 | 80 |
Piston Diameter(mm) | Φ130（compression） | Φ130（compression）/Φ50(bending) |
Max. Hydraulic Pressure(MPa) | 25 | 25 |
Rated Flow Rate of Oil Pump(L/min) | 1.52 | 1.52 |
Motor Power(kW) | 0.75 | 0.75 |
Overall Dimension（L*W*H）(mm) | 820×450×1300 | 820×450×1300 |
Weight (kg) | 500 | 500 |
