- Size: 1.47
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WE
- Weight: 2800.000 kg
1. Application:

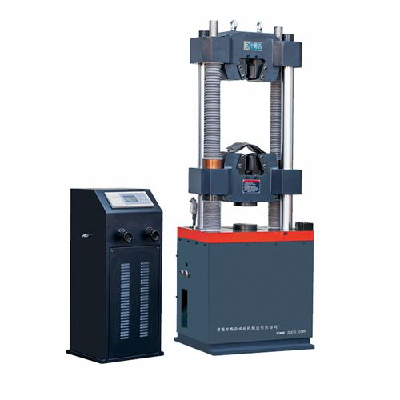

The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, shearing etc. Mainly test for metal materials.
Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2.Main Function and Usage
It is mainly used in the tensile testing of metal materials with obvious yield phenomenon.
Control method of rate testing: manual control.
It can be used in testing the tensile strength, yield strength, percentage elongation after fracture and other mechanical performance index of the metal materials.
- Size: 1.47
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WE
- Weight: 2800.000 kg
Model | WE-2000D | WE-1000D | WE-600D | WE-600B | WE-300B |
Maximum Testing Force | 2000kN | 1000 kN | 600kN | 600kN | 300kN |
Class of Testing Machine | Class 1 | ||||
Efficient Measure Range | 10%-100%FS | ||||
Relative Accuracy of Value Display | ±1% | ||||
Tensile Volume（mm） | 1300 | 700 | 650 | 650 | 650 |
Compression Volume（mm） | 1000 | 550 | 550 | 550 | 600 |
Column Space（mm） | 745 | 550 | 450 | 430 | 430 |
Round Specimen Clamping Range（mm） | Φ20-Φ65 | Φ6-Φ45 | Φ6-Φ40 | Φ6-Φ40 | Φ6-Φ26 |
Flat Specimen Clamping Thickness（mm） | 0-50 | 0-30 | 0-30 | 0-30 | 0-30 |
Max. Width of Flat Specimen Clamping（mm） | 140 | 75 | 75 | 75 | 75 |
Pressure Plate Dimension（mm） | Φ300 | Φ160 | Φ160 | Φ160 | Φ160 |
Overall Dimension（L*W*H）(mm) | 1200*800*3300 | 910*830*2300 | 840*700*2200 | 740*590*2150 | 740*590*215000 |
Oil Source Console Dimension（mm） | 700*700*1500 | ||||
Total Motor Power（kW） | 4 | 2 | 2 | 2 | 1.5 |
Total Weight（kg） | 9000 | 3200 | 2300 | 2000 | 1600 |
