- Size: 0.68
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WDW
- Weight: 250.000 kg

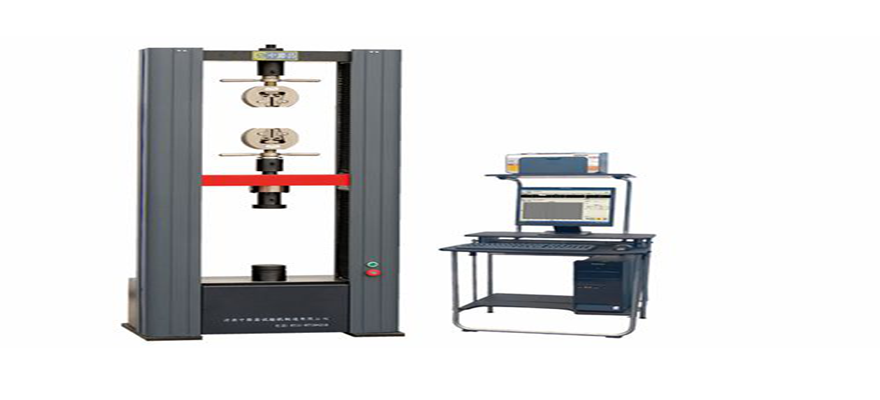

Main Function and Usage
It is suitable for tensile,compression, bending , cutting , stripping, splitting and other testings for metal materials or non-metal materials.
Main Performance Characters
◆Door type frame structure, with double space.
◆It adopts circular tooth profile synchronous belts in the transmission part, ball screw as assistant transmission, conducting a stable transmission.
◆Driven by TECO servo motor, putting the movement of the cross beam from top to bottom, the testing takes it s own process step by step.
Adaptable Standard: GB、ISO、ASTM、DIN
- Size: 0.68
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WDW
- Weight: 250.000 kg
Model | WDW-10M | WDW-20M | WDW-30M | WDW-50M | WDW-100M | WDW-200M | WDW-300M |
Max. Testing Force | 10kN | 20kN | 30kN | 50kN | 100kN | 200kN | 300kN |
Character | Adopting TECO servo systems and servo motor, with full-digital Measure control system | ||||||
Machine Stiffness(kN/mm) | 80 | 80 | 80 | 250 | 300 | 400 | 600 |
Measure Range of Testing Force | 2%-100% of the Max. testing force | ||||||
Accuracy of Testing Machine | Over ±1% than the value display | ||||||
Accuracy of Deformation Measure | ±1% | ||||||
Measure of Cross-beam Displacement(mm) | Discrimination 0.001 | ||||||
Accuracy of Testing Force Value Display | Over ±1% than the value display | ||||||
Measure Range of Deformation | 2-100% | ||||||
Measure Range of Large Deformation | 10～800（optional） | ||||||
Accuracy of Large Deformation | With in ±1% of the value display | ||||||
Discrimination of Displacement(mm) | 0.001 | ||||||
Adjustment Range of Force Control Speed | 0.001～10% | ||||||
Accuracy of Force Control Speed | ≤±1% | ||||||
Adjustment Range of Deformation Speed | 0.00025 /S～0.0025 /S | ||||||
Control Accuracy of Deformation Rate | ≤±1% | ||||||
Adjustment Range of Displacement Rate | 0.01mm/min～500mm/min；(random setting) | ||||||
Accuracy of Displacement Rate and Space | ≤±1% | ||||||
Tensile Volume(mm) | 800 | 800 | 800 | 600 | 600 | 600 | 600 |
Width of the Testing Space(mm) | 370 | 370 | 370 | 420 | 470 | 600 | 600 |
Overall Dimension (mm) | 686 ×525×1880 | 686 ×525×1880 | 686 ×525×1880 | 845 ×654×2176 | 845 ×654×2176 | 1100×770×2558 | 1100×770×2558 |
Clamping Type | Standard Refiguration: wedge tensile,compression, bending optional implement,wedge, plate and any other jaw optional implement | ||||||
Weight(kg) | 250 | 250 | 500 | 700 | 1560 | 2000 | |
Motor Power(kW) | 0.75 | 0.75 | 1 | 1.5 | 3 | 5 | |
Type of Machine | Floor type | ||||||
