- Size: 0.68
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WDW
- Weight: 250.000 kg

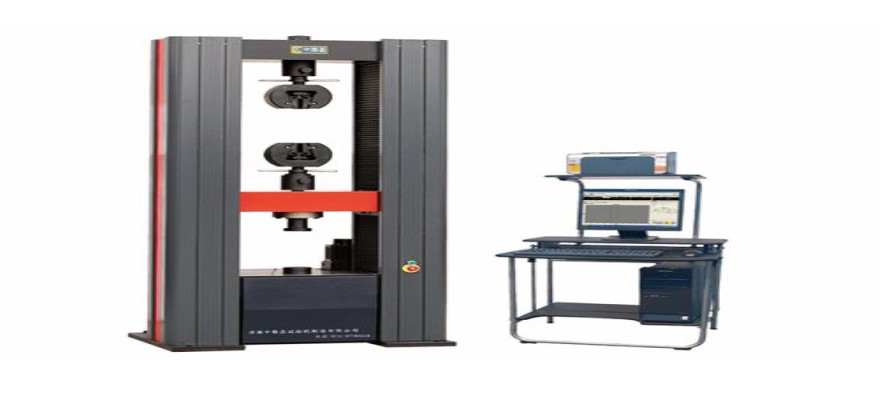

Main Function and Usage
It is suitable for tensile,compression, bending, cutting , stripping, splitting and other testings for metal materials or non-metal materials.
Main Performance Characters
◆Door type frame structure, with double space.
◆It adopts circular tooth profile synchronous belts in the transmission part, ball screw as assistant transmission, conducting a stable transmission.
◆Driven by Panasonic servo motor, putting the movement of the cross beam from top to bottom, the testing takes it s own process step by step.
◆Using high precision CELTRON brand load sensor, make the testing of force value more accurate.
Adaptable Standard GB、ISO、ASTM、DIN
- Size: 0.68
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WDW
- Weight: 250.000 kg
| Maximum testing force | 10kN | 20kN | 30kN | 50kN | 100kN | 200kN | 300kN |
| Host stiffness (KN/mm) | 80 | 80 | 80 | 250 | 300 | 400 | 600 |
| Force measurement range | Between2% and 100% of the maximum test force | ||||||
| Accuracy of testing machine | Is superior to the value plus or minus ±1% | ||||||
| Accuracy of deformation measurement | ±1% | ||||||
| Modulus displacement measurement (mm) | definition resolving ability 0.001 | ||||||
| Test force indication accuracy | Is superior to the value plus or minus ±1% | ||||||
| Measurement range of deformation | 2-100% | ||||||
| Large deformation measurement range | 10mm-800mm(apolegamic) | ||||||
| Large deformation indication accuracy | In the value of ±1% | ||||||
| Displacement resolution (mm) | 0.001 | ||||||
| Force control speed adjustment range | 0.001-10% | ||||||
| Force control speed control accuracy | ≤±1% | ||||||
| Deformation speed adjustment range | 0.00025/S-0.0025/S | ||||||
| Deformation rate control precision | ≤±1% | ||||||
| Displacement speed adjustment range | 0.005mm/min-500mm/min;handpicked | ||||||
| Displacement rate spatial accuracy | ≤±1% | ||||||
| Stretch stroke (mm) | 800 | 800 | 800 | 600 | 600 | 600 | 600 |
| Test space width (mm) | 370 | 370 | 370 | 420 | 470 | 600 | 600 |
| Host dimensions (mm) | 686*525*1880 | 845*654*2176 | 1100*770*2558 | ||||
| Clamp form | Standard wedge-shape stretch appendage, compression appendage, and bending appendage, wedge-shape, tablet and other appendages that users require | ||||||
| motor power (KW) | 0.75 | 0.75 | 1 | 1.5 | 3 | 5 | |
| Weight (KG) | 250 | 250 | 500 | 700 | 1560 | 2000 | |
| Complete appliance form | floor model | ||||||
