- Size: 1.74
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WAW
- Weight: 3200.000 kg
Main advantages of this series of products
Famous brand sensor configuration (Sensor of Class 0.5 is from world famous brand, while sensor of Class 1 is from domestic famous brand) to keep high precision and stability.
The stress is ten thousandth control accuracy, with high testing rate control accuracy, conforming to the Standard of GB/T228.1-2010.
The software of this series of products has passed the evaluation of the National Steel Material Testing Center, the testing data can be traced to the source.
Unit taking part in the drafting of Verification Regulation of Electro-hydraulic Servo Universal Testing Machines for JJG1063-2010.
Gaining national patent, the Servo Pump Device of Computer-control Electro-hydraulic Servo Universal Testing Machines.
Patent Characters: high testing rate control accuracy, ultra-silence and energy conservation.
Main Function and Usage

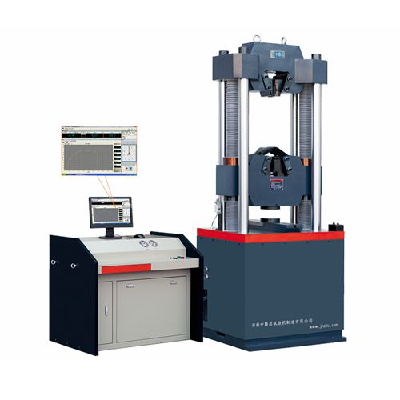

This product is mainly used for the tensile test of metal materials and component, testing the tensile strength, yield strength, stipulated plastic extension strength, elasticity modulus, percentage elongation after fracture and other mechanical performance index. Hydraulic wedge clamping. The testing results can be automatically stored, and the testing report, including the testing data and testing curve would be generated and printed automatically.
- Size: 1.74
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WAW
- Weight: 3200.000 kg
WAW-2000D | WAW-1000D | WAW-600D | WAW-600B | WAW-300B | |
Maximum Testing Force | 2000 kN | 1000 kN | 600 kN | 600 kN | 300 kN |
Class of Testing Machine | 0.5/1 | ||||
Efficient Measure Range | 2%-100%FS | ||||
Relative Value Display Accuracy | ±0.5%/±1% | ||||
Discrimination of Testing Force (mm) | |||||
1MPa/s~~60MPa/s | |||||
Accuracy of Stress Rate Control | ±1%/±2% | ||||
Discrimination of Deformation Measure (mm) | 0.005 | ||||
0.00025/s~~0.0025/s | |||||
Accuracy of Strain Rate Control | ±1%/±2% | ||||
Discrimination of Displacement Measure (mm) | 0.001 | ||||
Adjustment Range of Displacement Rate Control | 0.00025/s~~0.0025/s | ||||
Accuracy of Displacement Rate Control | ±0.5%/±1% | ||||
Range of Holding Control of Stress, Strain and Displacement | 0.3%~~100%FS | ||||
Accuracy of Holding Control of Stress, Strain and Displacement | ±1% | ||||
Tensile Volume(mm) | 1300 | 700 | 650 | 650 | 650 |
Compression Volume(mm) | 1000 | 550 | 550 | 550 | 600 |
Column Space(mm) | 745 | 550 | 450 | 430 | 430 |
Round Specimen Clamping Range(mm) | Φ20-Φ65 | Φ6-Φ45 | Φ6-Φ40 | Φ6-Φ40 | Φ6-Φ26 |
Flat Specimen Clamping Thickness(mm) | 0-50 | 0-30 | 0-30 | 0-30 | 0-30 |
Max. Width of Flat Specimen Clamping(mm) | 140 | 75 | 75 | 75 | 75 |
Pressure Plate Dimension(mm) | Φ300 | Φ160 | Φ160 | Φ160 | Φ160 |
Overall Dimension(mm) | 1200*800*3300 | 910*830*2300 | 840*700*2200 | 740*590*2150 | 740*590*215000 |
Oil Source Console Dimension(mm) | 1150*800*1000 | ||||
Total Motor Power(kW) | 4 | 2 | 2 | 2 | 1.5 |
Total Weight(kg) | 9000 | 3200 | 2300 | 2000 | 1600 |
