- Size: 0.48
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: YES
- Weight: 750.000 kg
1.Specifications

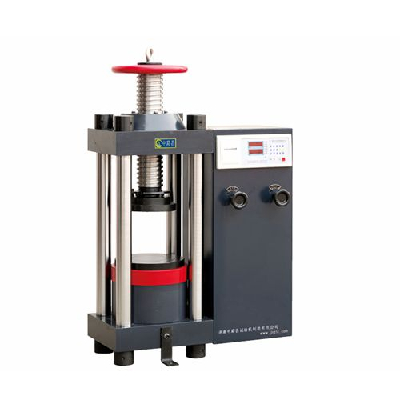

compression testing machine
Hydraulic pressurization
Electronic force measurement
Outage data protection
2. Application
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institutionlines. The test operation and data processing meets standard requirements.
3.Shipping and packing:
>Packing Method: Horizontal Packing to saving moreipping cost.
> Packing Materials: Plywood Case metting export long transport requirement.
> Shiping Time: Shipped within 15-20 days after payment.
> Shipping Way: Shipped by sea or air is available.
4.Advantage:
>Coaxial degree of good host: Tensile test to avoid the impact of lateral force to ensure a very high test success rate
>High rigidity of the host: low failure rate, good reliability, long service life
>Measurement and control hardware: sensors, extensometers, photoelectric encoders are brand-name configuration. High accuracy, good year stability.
>Measurement and control system software: After the National Steel Materials Testing Center review. To ensure that the export data qualified, the success rate of comparative test.
>Hydraulic system servo pump patented technology: closed-loop control of high precision. Good reliability
>Each hydraulic universal testing machine factory has passed the 138 program test items
>Each electronic universal testing machine factory has passed 112 program test items
>Each pressure test machine factory has passed the 76 program test items
>We promise, after-sales service for 12 months, promptly and promptly deal with all the problems aftermarket.
- Size: 0.48
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: YES
- Weight: 750.000 kg
Maximum Testing Force | 2000kN | 2000kN | 3000kN |
Measure Range of Testing Force | 4%~100%FS | ||
Relative Accuracy of Value Display of Testing Force | ≤±1% | ≤±1% | <±1% |
Adjustment method of Lead Screw | Manual | Manual | Electronic |
Top and Bottom Pressure Plate Dimension (mm)) | Φ225、Φ300 | 260×300 | 370×370 |
Max.Space of Top and Bottom Pressure Plate(mm) | 320 | 320 | 330 |
Max.Piston Stroke(mm) | 30 | 30 | 50 |
Piston Diameter(mm) | Φ250 | Φ250 | Φ310 |
Rated Pressure of the Hydraulic Pump(Amp) | 40 | 40 | 40 |
Source Power(kW) | Three phase 0.75 | Three phase 0.75 | Three phase 1.1 |
Overall Dimension(L*W*H)(mm) | 800×500×1200 | 800×500×1200 | 1000×600×1500 |
Weight (kg) | 750 | 750 | 1800 |
