- Size: 1.30
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WEW
- Weight: 2300.000 kg

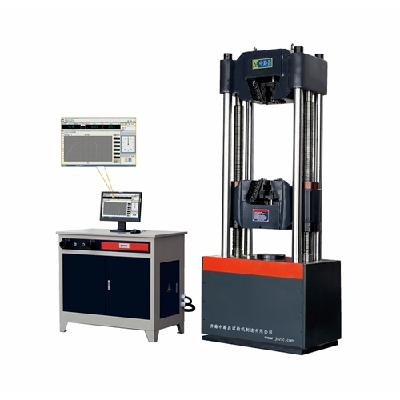

The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, shearing etc. Mainly test for metal materials.
Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
Main Function and Usage:
◆This product is mainly used for the tensile test of metal materials, testing the tensile strength,yield strength, stipulated plastic extension strength, percentage elongation after fracture,elasticity modulus and other mechanical performance index.
◆Control method of rate testing: manual control.
◆The testing results can be automatically stored, and the testing report,including the testing data and testing curve would be generated and printed automatically.
- Size: 1.30
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WEW
- Weight: 2300.000 kg
Model | WEW-2000D | WEW-1000D | WEW-600D | WEW-600B | WEW-300B |
Maximum Testing Force | 2000 kN | 1000 kN | 600 kN | 600 kN | 300 kN |
Class of Testing Machine | Class 1 | ||||
Efficient Measure Range | 10%-100%FS | ||||
Relative Accuracy of Value Display | ±1% | ||||
Discrimination of Testing Force | 0.005 | ||||
Discrimination of Displacement | 0.001 | ||||
Tensile Volume(mm) | 1300 | 700 | 650 | 650 | 650 |
Compression Volume(mm) | 1000 | 550 | 550 | 550 | 600 |
Column Space(mm) | 745 | 550 | 450 | 430 | 430 |
Round Specimen Clamping Range(mm) | Φ20-Φ65 | Φ6-Φ45 | Φ6-Φ40 | Φ6-Φ40 | Φ6-Φ26 |
Flat Specimen Clamping Thickness(mm) | 0-50 | 0-30 | 0-30 | 0-30 | 0-30 |
Max. Width of Flat Specimen Clamping(mm) | 140 | 75 | 75 | 75 | 75 |
Pressure Plate Dimension(mm) | Φ300 | Φ160 | Φ160 | Φ160 | Φ160 |
Overall Dimension(L*W*H)(mm) | 1200*800*3300 | 910*830*2300 | 840*700*2200 | 740*590*2150 | 740*590*215000 |
Oil Source Console Dimension(mm) | 1150*800*1000 | ||||
Total Motor Power(kW) | 4 | 2 | 2 | 2 | 1.5 |
Total Weight(kg) | 9000 | 3200 | 2300 | 2000 | 1600 |
