- Size: 2,37
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WAW
- Weight: 4500.000 kg
1. Application:

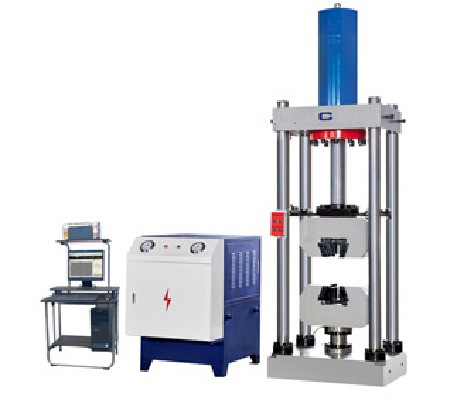

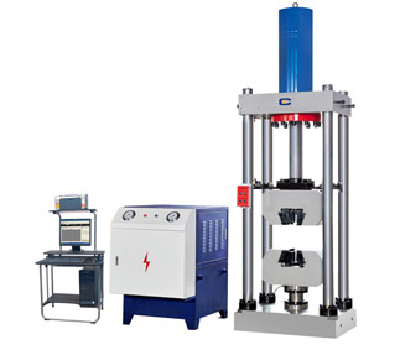

Computerized Single Pull Tensile Testing Machine/ High Quality Pull Fracture Testing Machine is applied in steel industry, the high fatigue metal rapid tensile testing.It adopt four-column single pull-type frame structures,realized the bi-directional oil cylinder rising and falling rapidly in a space,to adjust the testing space and tension-compression automatically.The whole test process with the same resolution.
2.Standards:
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3.Main Function and Usage
◆This product is mainly used for the tensile test of metal materials. It is totally conformed to the requirement of GB/T228.1-2010,Metallic materials.Tensile testing.Part 1: Method of test at room temperature.
◆This product is safe and reliable, with reasonable product structure,elegant appearance and large stiffness.
- Size: 2,37
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: WAW
- Weight: 4500.000 kg
Model | WAW-600DL | WAW-1000DL |
Class of Testing Machine | Class 0.3/0.5 | |
Maximum Testing Force(kN) | 600 | 1000 |
Measure Range of Testing Force(kN) | 6～600 | 10～1000 |
Value Display Accuracy of Testing Force | No more than ±0.3%/±0.5% inaccuracy from the value display | |
Discrimination of Displacement Measure （mm） | 0.005 | |
Accuracy of Displacement Measure | No more than ±0.5 % inaccuracy from the value display | |
Discrimination of Deformation Measure（mm） | 0.001 | |
Maximum Piston Stroke（mm） | 680 | 680 |
Maximum Spacing of Tensile Jaw（mm） （Including Piston Stroke） | 700 | 700 |
Accuracy of Deformation Measure | No more than ±0.5 % inaccuracy from the value display | |
Overload Protection | If beyond the 5% of the full scale | |
Clamping Method | Hydraulic wedge clamping | |
Round Specimen Clamping Range（mm） | Φ14～Φ60 | Φ14～Φ60 |
Flat Specimen Clamping Range（mm） | 0～60 | 0～60 |
Column Number（Unit） | 4 | |
Overall Dimension（mm） | 1000×750×3160 | 1000×750×3160 |
Total Power（kW） | 7.5 | |
Weight（kg） | 4500 | 5000 |
