Product Details
- Size: 600*560*1500
- Place of Origin: SHANDONG CHIINA
- Brand Name: Jinan XLC Testing Machine Co.,Ltd

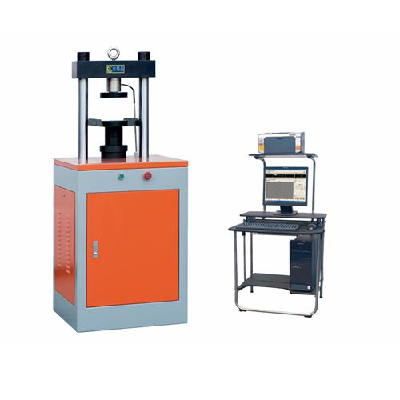

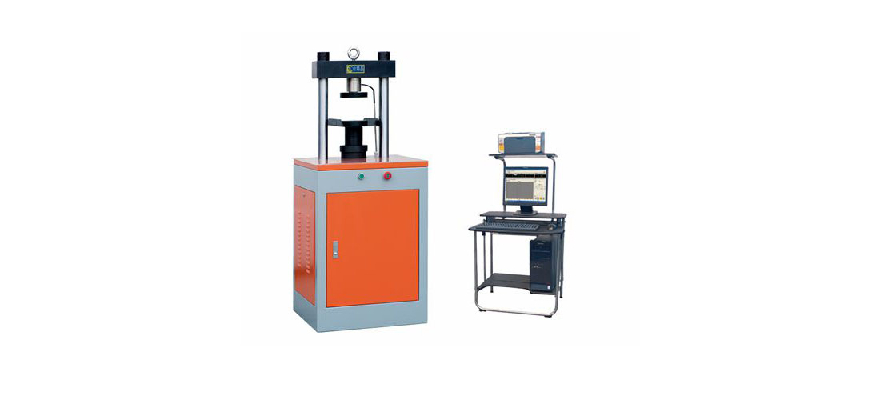

- Model Number: YAW-300D/300E
- Weight: 400.000 kg
Max. Test Compression Force: 300KN
Measure Scale: 2%-100%FS
Accuracy Class: Level1
Top and Bottom Pressure Plate Dimension(mm):260
The next size(mm): 155
Motor Power(kw):0.75
- Size: 600*560*1500
- Place of Origin: SHANDONG CHIINA
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: YAW-300D/300E
- Weight: 400.000 kg
| Model | YAW-300D | YAW-300E |
| Max.Compression Force | 300KN | 300KN(compression)/10KN(bending) |
| Top and Bottom Pressure PlateDimension(mm) | 260 | 260 |
| The next size(mm) | 155 | 155(compression)/80*150(bending) |
| Motor Power | 0.75 | 0.75 |
| Loading Speed | 2.4KN/S upper and down200N/S | 50N/S upper and down5N/S(bending) |
