- Size: 0.504
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: YAW
- Weight: 400.000 kg
Main Function and Usage

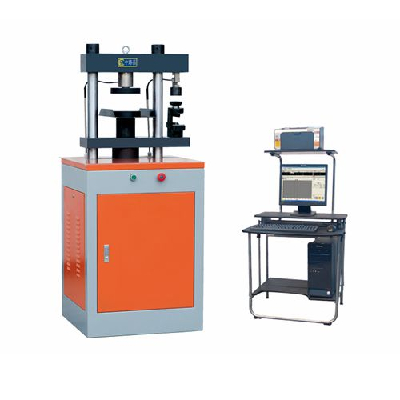

The model YAW-300D can be used in the compression strength testing of cement mortar, while the model YAW-300E can be used in the compression and bending strength of cement mortar.
Control Method of Testing Rate: Electro-hydraulic closed-loop control
Main Performance Characters
◆Driven by servo motor,this product avoids leak and blocking of servo value,contracting to the traditional hydraulic type.
◆Zero noise.
◆Testing the force by load sensor,the measure range can be as 2% to 100% of the full Measure scale, with high accuracy.
◆Equipped with well-found position limitation protection,overload protection,emergency shut-down and other safety protection measures.
- Size: 0.504
- Place of Origin: Jinan Shandong, China
- Brand Name: Jinan XLC Testing Machine Co.,Ltd
- Model Number: YAW
- Weight: 400.000 kg
Model | YAW-300D | YAW-300E |
Max. Test Compression Force | 300 kN | 300 kN(compression) /10 kN(bending) |
Measure Scale | 2%-100%FS | 2%-100%FS |
Accuracy Class | Class 1 | Class 2 |
Loading Speed | 2.4kN/S±200N/S | 2.4kN/S±200N/S(compression) 50N/S±5N/S(bending) |
Pressure Plate Space(mm) | 260 | 260 |
Top and Bottom Pressure Plate Dimension (mm) | Φ155 | Φ155(compression)/80×150(bending) |
Efficient Stroke of Lead Screw(mm) | 100 | 100 |
Column Clear Space(mm) | 300 | 300 |
Motor Power(kW) | 0.75 | 0.75 |
Overall Dimension(L*W*H)(mm) | 600×560×1500 | |
Weight (kg) | 400 | 400 |
